Veodyn
The data substrate for regional transportation hubs and agencies.
A node is a complete Veodyn instance scoped to one agency. It pulls from the systems that agency already runs, normalizes what arrives, stores it locally, serves it over an API, and draws it. It is open source, self-hosted, and it works standing alone.
Five surfaces
Every node ships all five. A hub runs the same five over its own data and adds federation across the nodes registered with it; that layer is commercial and is not part of this repository. These docs describe a node.
| Surface | What it does |
|---|---|
| Adapters | Pull from transit, traffic, weather and fleet feeds, and from the SQL warehouses you already have |
| Normalization | Harmonize what arrives into typed columns against your own schema conventions |
| Warehouse | Local storage on infrastructure you control. The node is the system of record for your data |
| APIs | REST, per-query API keys, and a native Model Context Protocol endpoint for agents |
| Visualization | Dashboards, embeddable widgets, 15 core chart types, and an assistant that drafts them |
Architecture maps each surface onto the services that deliver it.
What you can do with it
- Queries: a full SQL editor with a schema browser, parameters, schedules, forking, and per-query permissions, plus a no-code Visual builder that composes SQL from field picks.

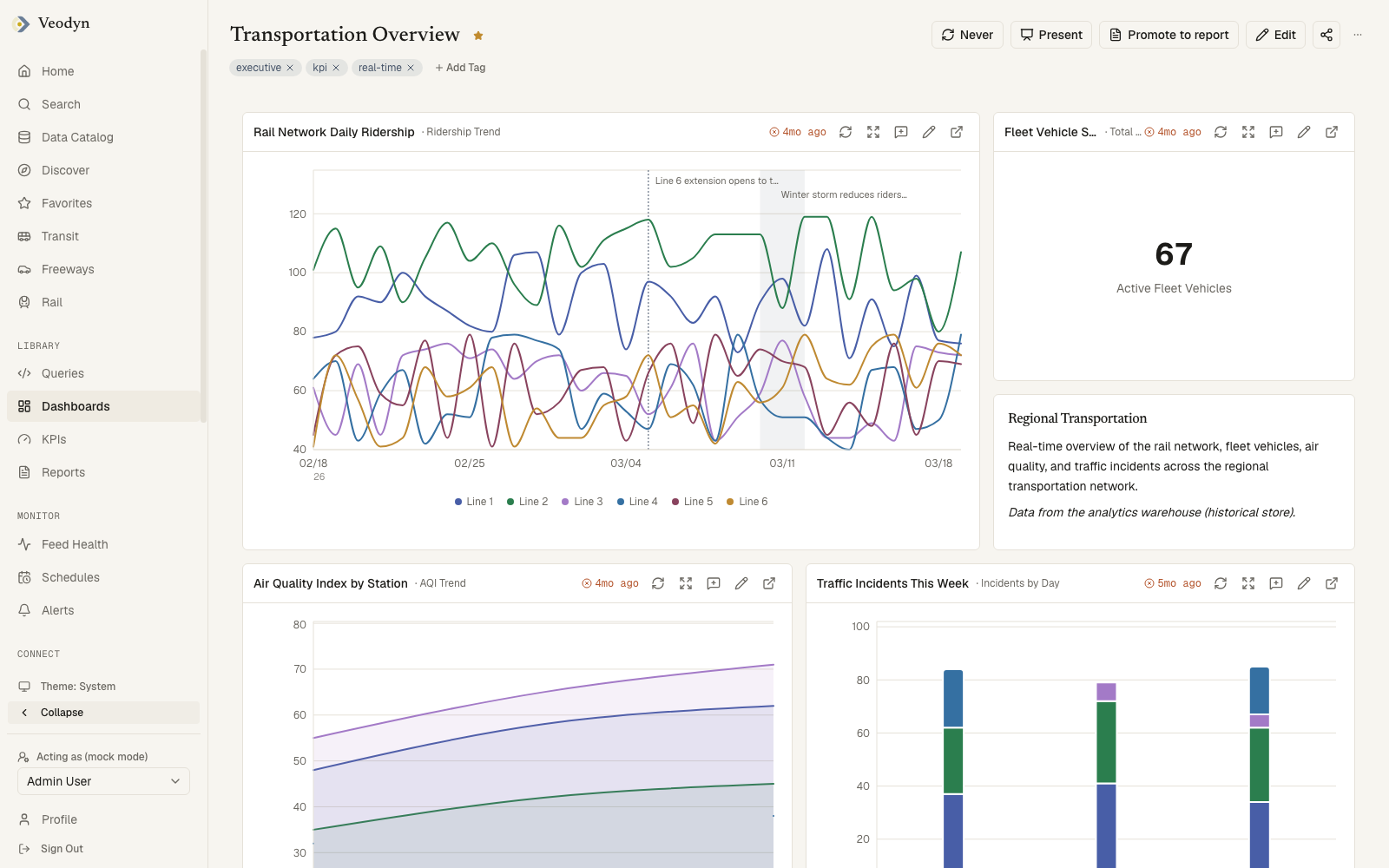

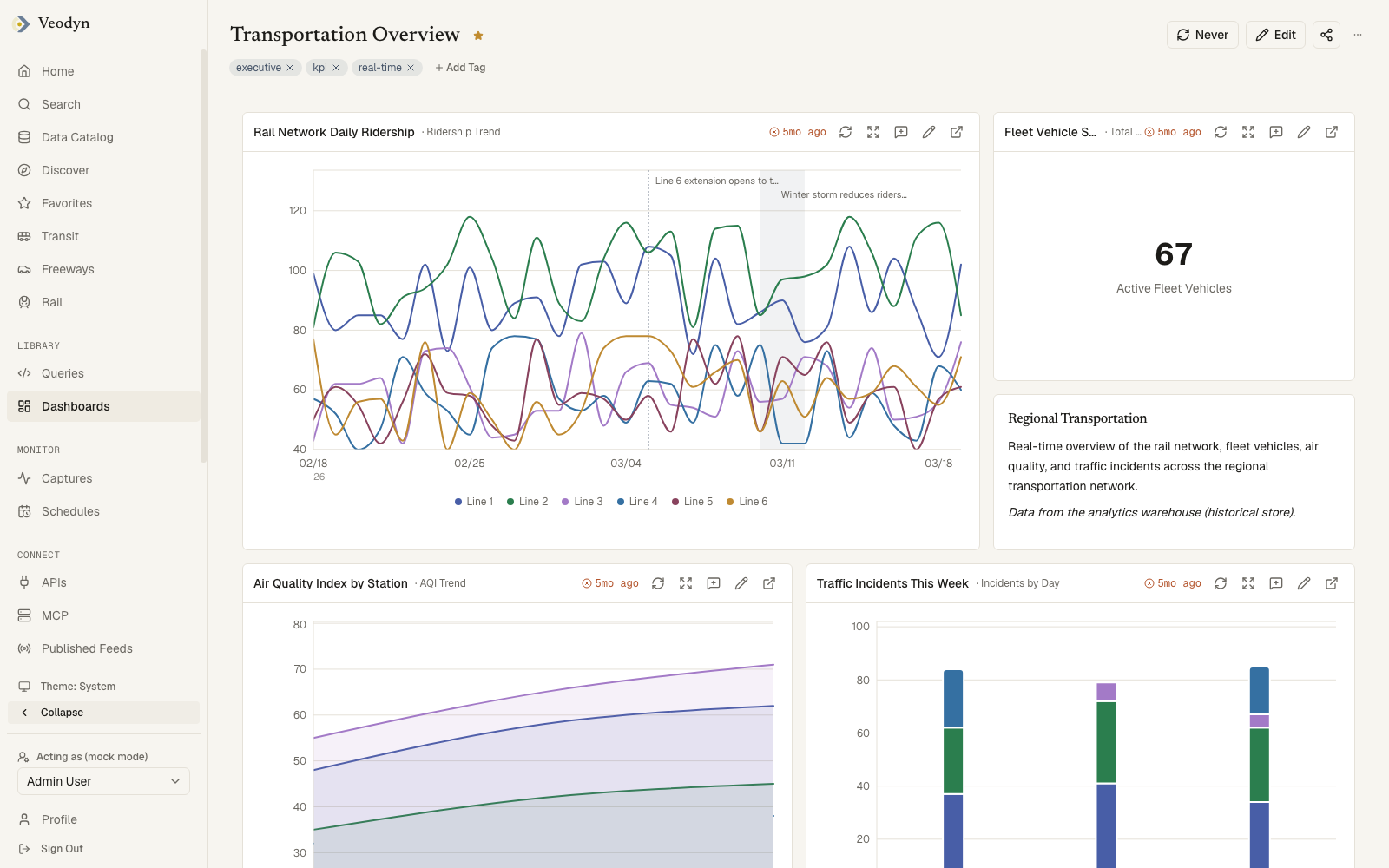

- Dashboards: query results arranged on a drag-and-drop grid, with auto-refresh, dashboard-level parameters, annotations, and public share links.
- Visualizations: 15 core types (table, chart, counter, pivot, funnel, map, heatmap, sankey, choropleth, cohort, sunburst, word cloud, and more), each with a live-preview editor. Instances can allowlist types and install custom visualization plugins.
- Data catalog: browsable datasets with schema, coverage, and freshness, organized into configurable domains (Transit, Freeways, Rail, or whatever your instance defines).
- Feed health: whether each upstream feed is current, judged against a cadence you declare, with the datasets it populates named beside it.
- Create with AI: a chat that drafts queries, dashboards and snippets, grounded in what your instance actually has, plus SQL generation in the editor. The model writes words; code assigns IDs, so a suggestion can never cite a query that does not exist.
- Search everything: one federated search over queries, dashboards and datasets, with a shared tag vocabulary that crosses object types.
- White-label: brand name, logo, accent color, chart palette, fonts, domains, and feature flags all come from instance configuration, never from code.
The enterprise edition adds the management layer on top: KPIs, governed reports, the alerts surface, wall and presentation modes, shared-link governance, enterprise SSO, and the AI digest.
How a node is built
Three services behind one origin. Users only ever talk to the frontend; every backend call goes through a server-side proxy route carrying the user's own session, so backend credentials never reach the browser.
| Layer | Technology |
|---|---|
| Frontend | Next.js 16, React 19, TypeScript, Tailwind CSS v4, shadcn/ui |
| Query service | Flask, SQLAlchemy, PostgreSQL, Redis |
| Sidecar API | Python 3.11, FastAPI, SQLAlchemy 2 |
| Historical warehouse | ClickHouse |
| AI | Anthropic Claude (bring your own key; every AI flow has a manual path) |
| Deployment | Docker images, Helm charts for Kubernetes |
Where to go next
- Editions: node or hub, Community or Enterprise, and what each one includes.
- Getting Started: run a node locally.
- Configuration: brand it as your own instance.
- Architecture: how the five surfaces map onto the services.
- Deployment: production installation on Kubernetes.
